FP/MP series hot forging press

Product introduction

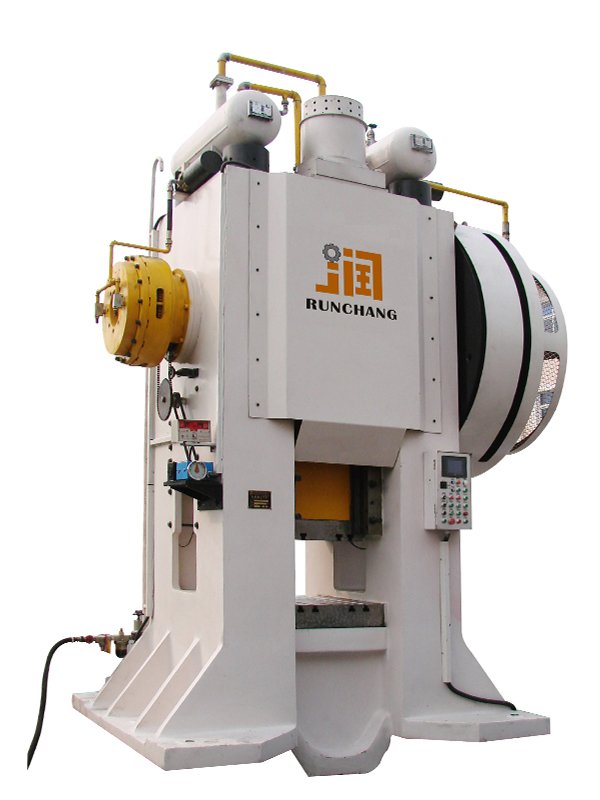

FPMP series hot forging press

Hot stamping press produced by our company is not only praised by domestic customers, but also favored by foreign customers, and products are exported to Vietnam, India, Argentina and other countries. The MP6300T hot forging press produced by our company was put into production in 2010. It is now running well. Welcome to visit our company!

Hot die forging press has been applied for national patent product, patent number：200620019900.1。

FPMP series hot forging press：

1、The design of top and bottom materials saves forging material and saves energy consumption。
2、The mould has the advantages of high impact speed, short thermal contact time and long service life of the die。
3、There are working windows on the left and right sides of the frame, and the forging is easy to transfer。
4、The production efficiency is high, the operation is simple, the maintenance is convenient, and the production cost is low。
5、It has special mould design, quick solution and simple operation。
6、There are reliable and comprehensive centralized lubrication system and manual supplementary lubrication system, which can effectively reduce the friction loss。
7、PLC control is adopted to realize multiple safe operating loop system to ensure operator safety。
8、The actual forging pressure is displayed directly by the American tonnage numerical control instrument, and the overload alarm device is provided。

Local use：

Widely used in automobile, train, ship, aviation, mining machinery, hardware tool industry parts pressure processing, is the modern forging plant indispensable advanced equipment, is the preferred choice of precision forging machinery。

Main technical parameters of FPMP series hot die forging press：

Main technical parameters	Company	FP-400	FP-630	FP-1000	MP-1600	MP-2500	MP-4000	MP-5000	MP-6300
Nominal strike force	KN	4000	6300	10000	16000	25000	40000	50000	63000
Maximum travel of slider	mm	180	200	250	280	320	360	400	450
Slider adjustment	mm	8	8	8	14	18	28	32	35
Stroke times	次/min	100	85	80	75	70	55	45	35
Maximum die height	mm	370	250	460	875	1000	1110	1316	1372
Slider size	mm	600× 600	660× 690	950× 830	960× 1050	1000× 1100	1340× 1730	1550× 1875	1800× 1925
Worktable size	mm	780× 850	780× 1000	1120× 1050	1070× 1300	1150× 1250	1490× 2060	1570× 2250	1840× 2350
Main motor power	KW	37	45	80	95	132	250	280	355
